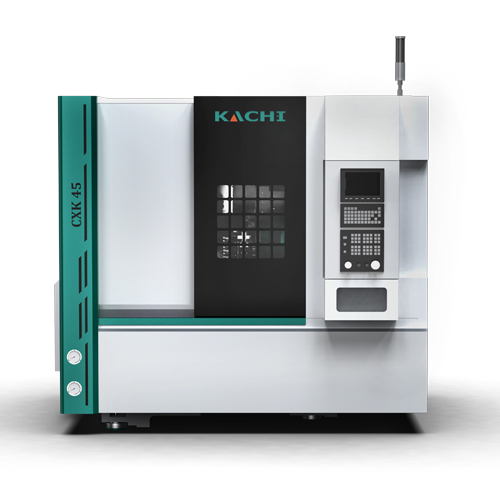

CXK45是一款車銑復合數控車床，集成了車、銑、鉆、鏜、鉸、攻絲等多功能于一身，特別適合一些形狀復雜、精度要求高的回轉體零件的加工，工件在一次裝夾中，可實現工序的自動交換及多道工序的復合加工，即可保證精度又可縮短產品制造工藝鏈，降低了成本，提高了生產效率

坎門機床廠CXK45技術參數

1. 床身上最大回轉直徑                                       ∅520mm

2. 刀架上回轉直徑                                           ∅150mm

3. 主軸通孔直徑                                             ∅56mm

4. 床身結構                                               45°斜床身

5. 主軸轉速范圍                                      50-4000mm/min

6. 主軸轉數級數                                               無極

7. 主軸端部形式                                               A2-5

8. X/Z/Y軸快移速度                                           15mm

9. X/Z/Y軸最大行程                              450mm/400mm/180mm

10. 主軸伺服電機                                              5.5KW

11. X/Z/Y軸伺服電機功率                             15Nm/10Nm/15Nm

12. Y軸端銑                                                      4頭

13. Y軸側銑                                                      4頭

14. 刀架最大裝刀量                                                  6

15. 刀方規格                                                     20X20

16.  機床尺寸（長x寬x高）                             2100X1730X2050

17. 機床重量                                                    2760Kg
